Setup ODBC Data Source for MySQL 8.0 on Parklane Clients/Workstations

Only run directly on the Client workstation that needs to connect to MySQL on the Parklane Server.

· To set up the ODBC driver, download the 32 bit or 64bit installer.

Parklane-MySync8-Client-32bit.exe

Parklane-MySync8-Client-64bit.exe

· Download the MySQL driver for ODBC below.

SQL Sync Client Workstations

· If you need both 32bit and 64bit on the same computer, install the 32bit version first.

· On the introduction click Next

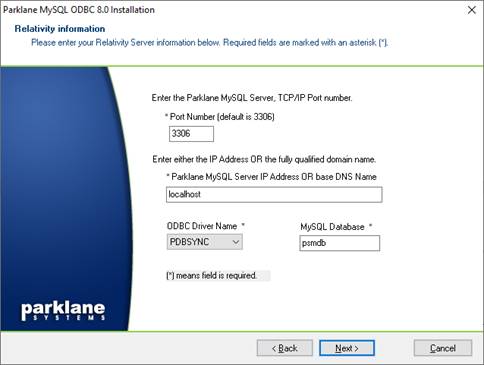

· Enter your Parklane Server address and Port for MySQL
- If you are using a Test database, you may need to change the database name

· Select: User DSN or System DSN

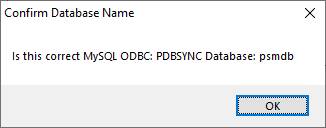

· Confirm the message below.

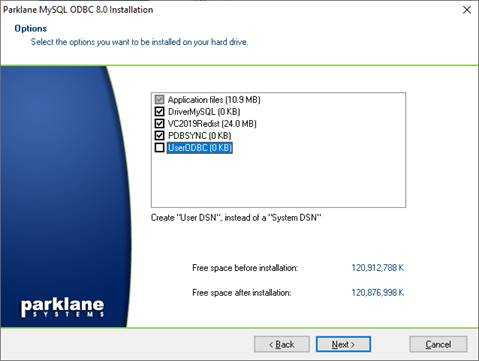

· Note: Use the “Custom” install option to specify a Test/Production database name.

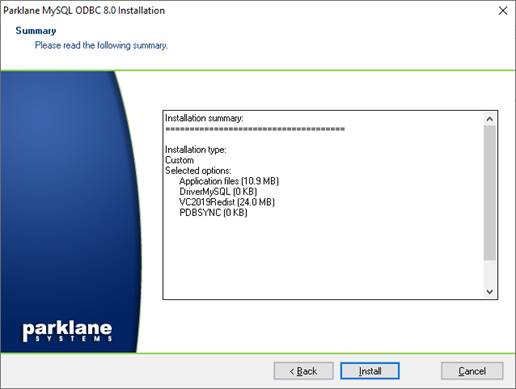

· Confirm options and click Install

· Visual C++ 2017 Redistributable is required by the MySQL Driver

· MySQL ODBC 8.0 driver will install

· On completion, the System DSN, PDBSYNC, has been created automatically
Click Finish

· Please contact Parklane Support, if you do not have a System DSN: PDBSYNC

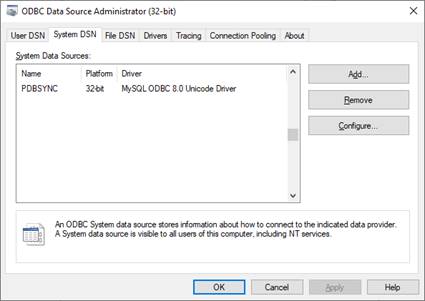

Verify the MySQL driver ODBC data source

· The window below will open automatically after the install.

Select tab System DSN.
Select the PDBSYNC driver as shown.

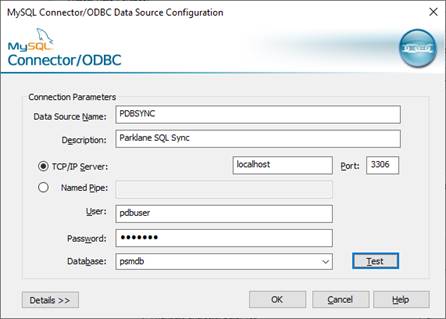

· Click Configure to check the connection details

Enter your Parklane Server IP Address or DNS name.
